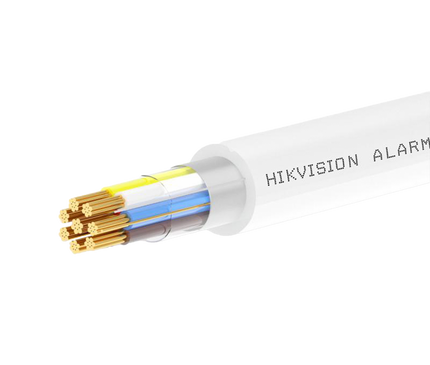

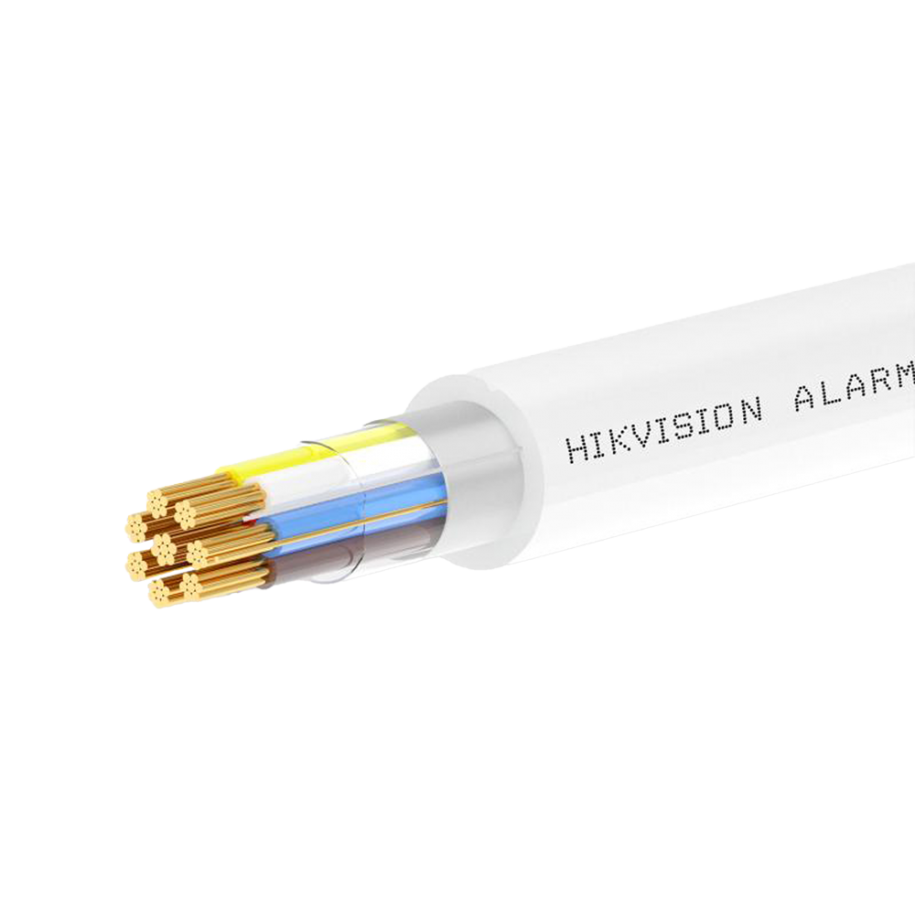

Hikvision DS-1AC2C6APL1-WHITE – 8-conductor shielded alarm cable, 100 meters – White
The Hikvision DS-1AC2C6APL1-WHITE is a high-quality, 8-conductor alarm cable measuring 100 meters, specially designed for reliable and professional security installations. Thanks to the combination of 6 conductors measuring 0.22 mm² and 2 conductors measuring 0.75 mm², this cable is ideal for connecting wired alarm systems, motion detectors, magnetic contacts, and other security components.
The high-quality copper conductors, effective shielding, and flame-retardant LSZH outer jacket ensure reliable signal transmission and a safe installation.
Reliable Signal Transmission and Power Supply
The Hikvision DS-1AC2C6APL1-WHITE features eight copper conductors with different cross-sections. The six 0.22 mm² conductors are suitable for signal transmission, while the two thicker 0.75 mm² conductors are ideal for powering connected security equipment.
Thanks to this combination, both power and signal cables can be routed through a single cable. This simplifies the installation and reduces the amount of cabling required.
Shielded for Minimal Interference
The alarm cable features shielding made of aluminum foil and Mylar tape, supplemented by a copper ground wire. This construction helps limit electromagnetic interference and contributes to a stable and reliable connection between the various security components.
As a result, the cable is particularly well-suited for professional alarm systems where interference-free communication is critical.
Fire-retardant LSZH outer jacket
The white outer jacket is made of LSZH (Low Smoke Zero Halogen). This material limits smoke generation and the emission of harmful halogen-containing gases in the event of a fire.
The cable complies with the European CPR Eca fire classification and is suitable for a wide range of indoor installations, depending on applicable installation regulations.
Key Features
-
8-conductor alarm cable: 6 x 0.22 mm² + 2 x 0.75 mm²
-
100-meter cable length: ideal for residential and professional security installations
-
100% copper conductors: for reliable signal and power transmission
-
Combined power and signal: two thicker wires for power and six wires for signals
-
Shielded design: aluminum foil and Mylar tape help reduce electromagnetic interference
-
LSZH outer jacket: halogen-free and low smoke emission in case of fire
-
CPR Eca classification: European fire classification
-
White cable jacket: for a neat and discreet finish
-
Flexible construction: easy to work with during installation
-
Wide temperature range: suitable for temperatures from -20 °C to +70 °C
Technical Specifications
| Property | Specification |
| Brand | Hikvision |
| Part Number | DS-1AC2C6APL1-WHITE |
| Product Type | Shielded alarm cable |
| Cable length | 100 meters |
| Number of conductors | 8 |
| Conductor cross-section | 6 x 0.22 mm² + 2 x 0.75 mm² |
| Conductor material | Copper (99.95%) |
| Shielding | Aluminum foil and Mylar tape |
| Ground wire | Copper |
| Outer jacket | LSZH |
| Color | White |
| Outer diameter | 5.2 mm (± 0.3 mm) |
| Fire Rating | CPR Eca |
| Operating temperature | -20 °C to +70 °C |
| Compliance | RoHS 2.0 |
Applications
The Hikvision DS-1AC2C6APL1-WHITE is suitable for wiring various security systems and components, including:
-
Wired alarm systems
-
PIR motion detectors
-
Magnetic contacts for doors and windows
-
Smoke detectors and fire alarm components
-
Glass break detectors
-
Other wired security sensors
Package contents
Why choose the Hikvision DS-1AC2C6APL1-WHITE?
With the Hikvision DS-1AC2C6APL1-WHITE, you’re choosing a reliable and versatile cabling solution for your security system. The combination of six signal wires, two thicker power wires, high-quality copper conductors, and a shielded LSZH jacket makes this cable particularly well-suited for a professional and organized installation.
Whether you’re installing a new alarm system or expanding an existing security system, this 8-wire Hikvision alarm cable offers the quality and flexibility you need.
