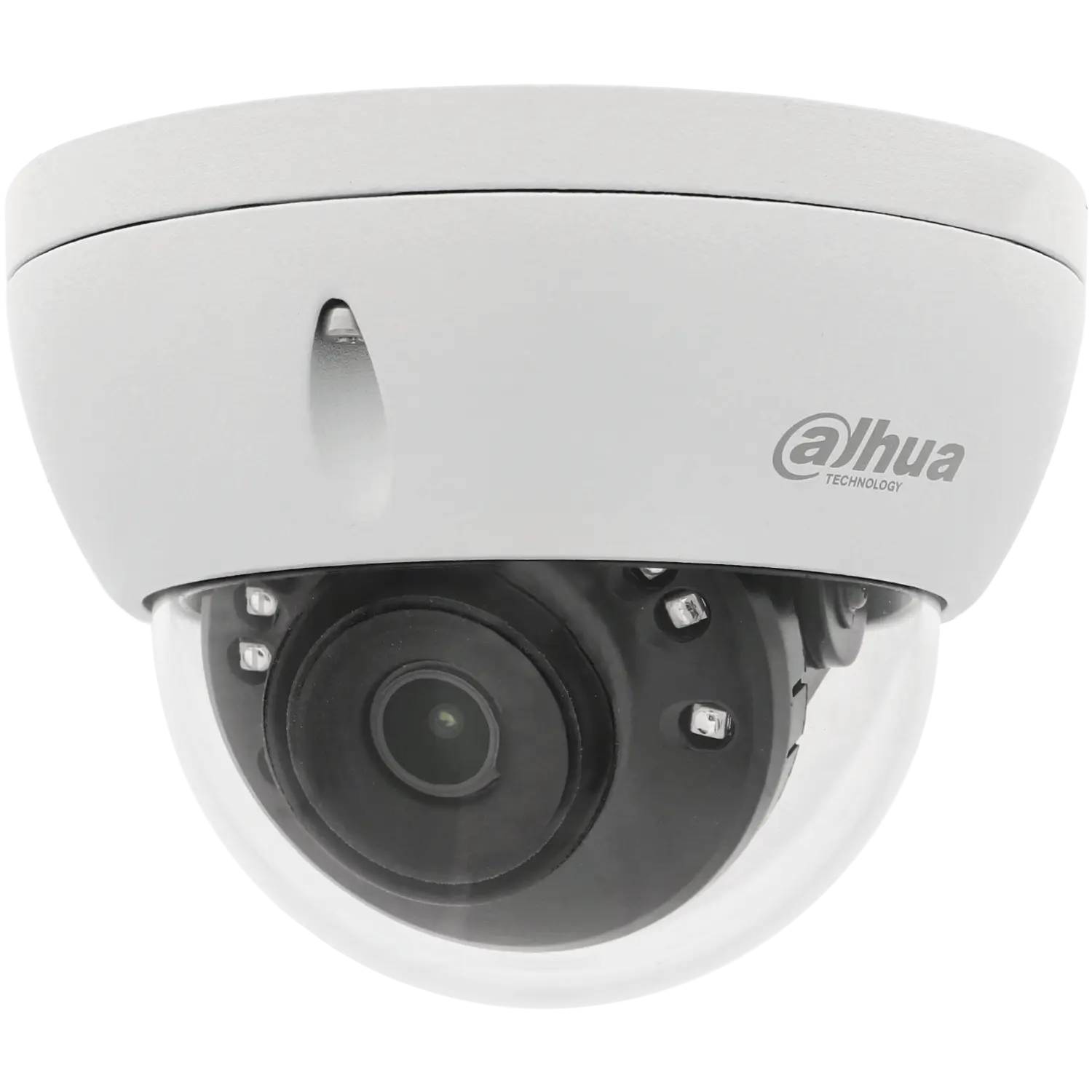

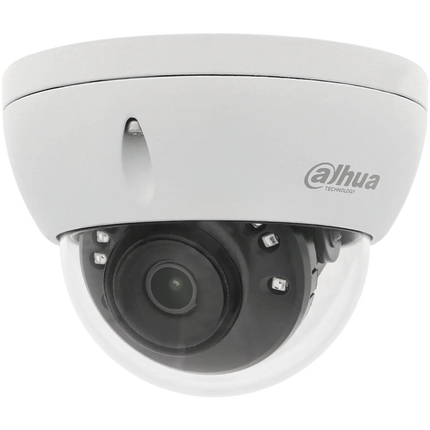

Dahua HAC-HDBW1500E-S2, 5MP 2.8mm HD-CVI Dome camera

The Dahua HAC-HDBW1500E-S2 is a powerful 5 megapixel dome security camera from the Lite series, designed for reliable and sharp video surveillance in a variety of situations. With a high resolution of 2880 × 1620 pixels, this camera delivers detailed images, making people, vehicles and events clearly identifiable.

The camera is equipped with a fixed lens 2.8 mm. With integrated infrared illumination and Smart IR technology, the camera provides clear night vision up to approximately 30 meters, without overexposing nearby objects.

With support for multiple video technologies (CVI, TVI, AHD and CVBS), this camera is easy to integrate into both existing and new systems. This makes it flexible and future-proof for various security solutions.

The sturdy dome housing with IP67 and IK10 rating ensures that the camera can withstand harsh weather conditions, dust and vandalism. This makes it ideal for both indoor and outdoor use, such as entrances, stores, warehouses and parking lots.

In addition, the camera features image optimization techniques such as DWDR, 2D/3D noise reduction and privacy masking, ensuring a stable and usable image under different lighting conditions.

Specifications:

• 5 MP CMOS image sensor (1/2.7").

• Maximum resolution: 2880 × 1620

• Max 25 fps @ 5MP (16:9)

• Fixed lens: 2.8 mm or 3.6 mm

• Viewing angle: up to approx. 132° (2.8 mm)

• Minimum illumination: 0.005 - 0.01 lux (0 lux with IR)

• Infrared night vision up to approx. 30 meters

• Smart IR technology (12 IR LEDs)

• Day/night function: automatic (ICR)

• WDR: DWDR, BLC, HLC support

• 2D/3D noise reduction (NR)

• Privacy masking: up to 8 zones

• Video output: CVI / TVI / AHD / CVBS (switchable)

• OSD menu via coax (UTC control)

• Power supply: 12 VDC ±30%

• Power consumption: approx. 3.5 W max.

• Protection class: IP67 (water and dust proof)

• Vandalism protection: IK10

• Housing: metal / plastic dome

• Operating temperature: -40°C to +60°C

• Dimensions: approx. Ø110 × 81 mm

• Weight: approx. 310 g

• 3-axis mounting (flexible positioning)
