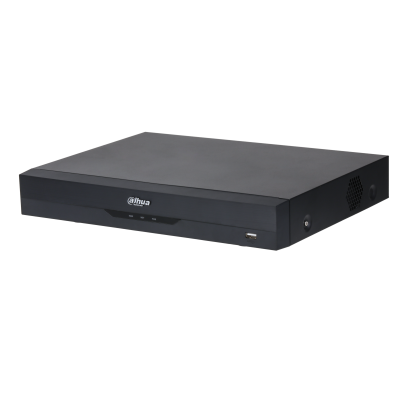

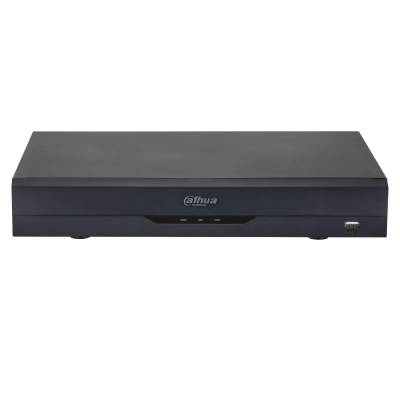

Dahua DH-XVR5108HS-4KL-I3, 8-channel DVR 8MP, HD-CVI/TVI/AHD/Analog (1xSATA)

DH-XVR5108HS-4KL-I3, WizSense 8-channel Penta-brid 8MP compact 1U digital video recorder

Penta-brid recorder, meaning that this recorder can handle as many as 5(!) different systems. HD-CVI, HD-AHD, TVI, IP and even traditional analog cameras can run on this system.

This particular DVR is capable of recording 4K 3840x2160 resolution, or lower) from 8 cameras simultaneously. Equipped with many additional intelligent features, including detection of people or vehicles and even face recognition! Consult the datasheet for more information.

The connections are with BNC and can be connected with combicoax or UTP cabling in combination with Baluns. If you also use IP cameras, connect them to your network, preferably wired and possibly via Wifi. It is also possible to connect a second screen on which a single camera can be displayed.

A very fine recorder that can handle all our surveillance cameras (up to 8MP), regardless of whether they are analog, HD-CVI, HD-AHD, TVI or IP. That also makes this recorder a great fit as a replacement for your recorder in existing analog installation.

Specifications:

• Model Dahua XVR5108H-4KL-I3
• Suitable for HD-CVI, HD-AHD, TVI, Analog and IP on all channels
• H.264+/H.264 dual-stream video compression
• All channels 4K/7F recording or lower, 5MP/12F or lower, 1080p/30F or lower
• Monitor output HDMI and VGA simultaneously
• 4 channels simultaneous playback
• Space for 1 SATA drive up to 10TB
• 3D intelligent positioning with Dahua PTZ dome cameras
• Various network monitoring possible such as Web viewer, PS software CMS (DSS/Smart PSS) and of course your cell phone (DMSS for Iphone and Android)
• Supplied without hard disk (can be ordered)
• Audio recording also possible
• Motion detection on each camera
• Including mouse and 12V power supply
• Fan on the processor: No
• Cabinet fan: Yes
• Dimension 325mm×257mm×55mm
