    DS-2CE57U1T-VPITF, 4K D/N IR 3-Axis Vandal Dome, 2.8mm, Fixed Lens

    Important!

    Please note if your current recorder can handle the HD resolution of this camera.
    This is not an IP camera. This camera connects to a coax cable and ideal as a replacement for your old coax based cctv system.

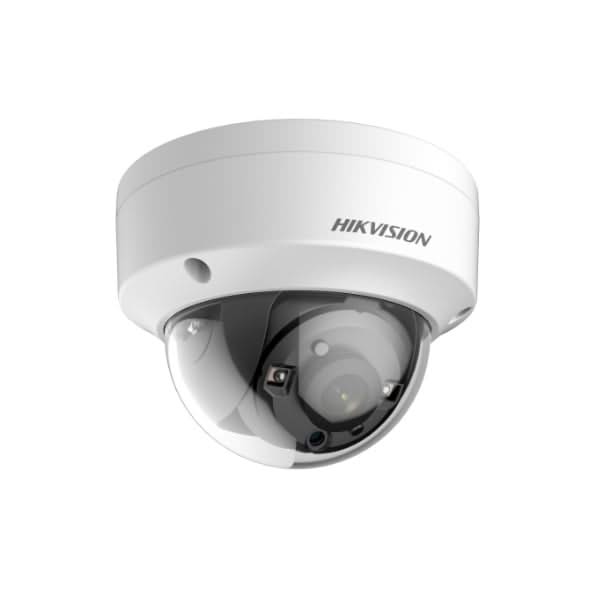

    Hikvision DS-2CE57U1T-VPITF, 4K D/N IR 3-Axis Vandal Dome, 2.8mm, Fixed Lens

    This model features a 4-in-1 video output so it can also be connected to an older analog system with cvbs.

    Turbo HD cameras feature the HD-TVI technology developed by Hikvision. This technology makes it possible to use high resolution cameras on COAX cabling. The advantage of HD-TVI technology is that it is easy to apply, even to the infrastructure of existing analog camera systems. Thanks to this technology, there is little delay in the image and distances of up to 700 meters can be achieved with full HD cameras.

    Specifications:

    Camera:

    • Image sensor: 8.29MP Progressive Scan CMOS
    • Pixel count: 3840x2160
    • Minimum illumination:
      0.01Lux/F1.2 in color, 0Lux with IR on
    • Framerate:
      TVI: 8MP (1-12.5fps), 5MP (1-20fps), 4MP,2MP (1-25fps)
      CVI: 8MP (1-12.5fps)
      AHD: 5MP (1-20fps)
      CVBS: 960H P/N
    • Shutter speed: 1/12.5s to 1/50,000s
    • Firing distance: 2.8mm
    • Lens type: Fixed lens / Fixed Iris
    • Horizontal aperture angle: 102.2°
    • WDR: DWDR
    • Infrared: up to 30m, EXIR,SmartIR

    Camera positioning:

    • Pan/Tilt/Rotation:
      • Tilt angle: 0~75°
      • Rotation: 0~355°
      • Pan: 0~355°

    Menu:

    • Day/Night Mode: Auto/Color/Black and White
    • White balance: Automatic/Manual
    • Backlight compensation: DWDR/BLC
    • Functions: brightness, sharpness, DNR, mirrored,SmartIR

    Interface:

    • Video output: 1 HD analog
    • Switch button: TVI/AHD/CVI/CVBS

    Other:

    • Operating temperature: -40 to 60 degrees
    • Power supply: DC 12V
    • Consumption: max. 5.3W
    • Water resistance: IP67
    • Vandal resistance: IK10
    • Material: metal
    • Dimensions: Ø111x82.4mm
