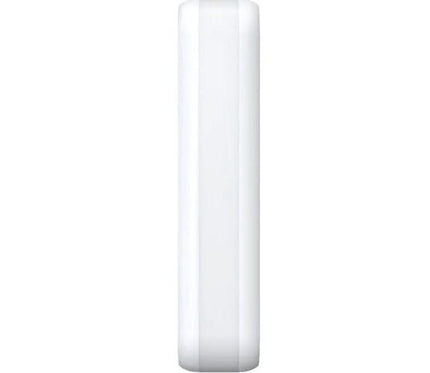

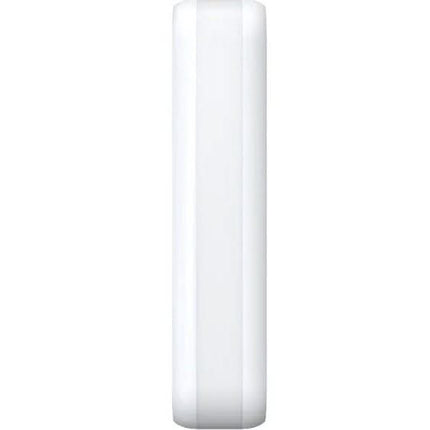

    Hikvision DS-PDC10DM-VG3, External dual-tech curtain detector wired

    • Slim design for window frame mounting
    • IP65 weather resistance for outdoor application
    • Active IR anti-masking
    • Automatic sensitivity
    • Selectable EOL resistors for alarm and tamper-proof wiring
    • Directional detection support

    Detectie Prestaties

    • Detection Method Passive Infrared; Microwave
    • Detection range

      Muurbevestiging: 10m

      Plafondmontage: 6m

    • Detectiehoek
    • Detectiezones 32
    • Detectable speed 0.2 ~ 3 m/s
    • Gevoeligheid Automatisch
    • Witlichtfilter 6500lux
    • Microwave frequency 24 GHz (24.15 ~ 24.25 GHz)
    • Support for digital temperature compensation
    • Support for creep zone protection
    • Ondersteuning tegen maskering

    Support

    • Ondersteuning bij digitale verwerking
    • Verzegelde optische ondersteuning
    • Sabotagebeveiliging voor; achter
    • Support for directional detection

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED indicator green (PIR), red (microwave), green + orange (mask), blue (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad

    Elektrische kenmerken

    • Stroomverbruik 22mA Max
    • Power supply9 to 16 VDC
    • Typical voltage 12 VDC

    Algemeen

    • Operating temperature -25 °C to 60 °C (-13 °F to 140 °F)
    • Storage temperature -25 °C to 60 °C (-13 °F to 140 °F)
    • Bedrijfsvochtigheid 10% tot 90%
    • IP-waarde IP65
    • Dimensions (WxHxD) 29.2 mm × 134.4 mm × 39.5 mm
    • 79g
    • Mounting height 2 to 4m
    • Montagemethode Muur;Plafond
    • Application scenarioIndoor,Outdoor
    • Beugel L-vormige adapter inbegrepen

    DS-PDC10DM-VG3, External dual-tech curtain detector wired
