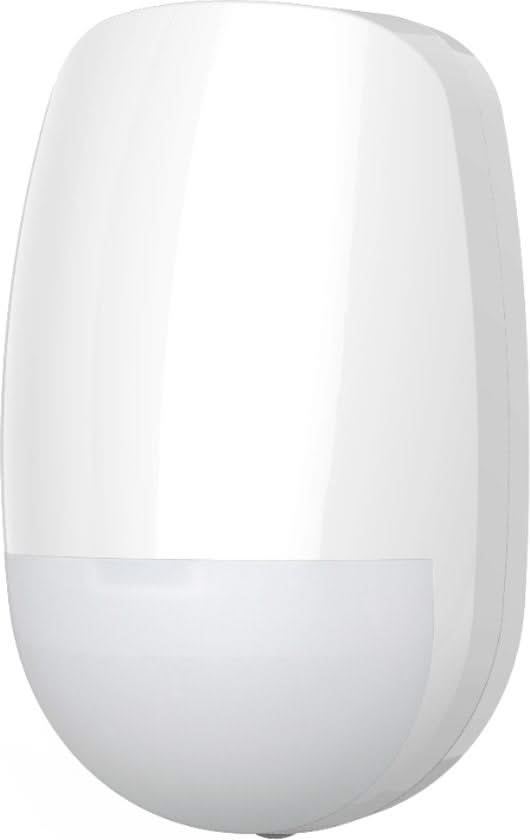

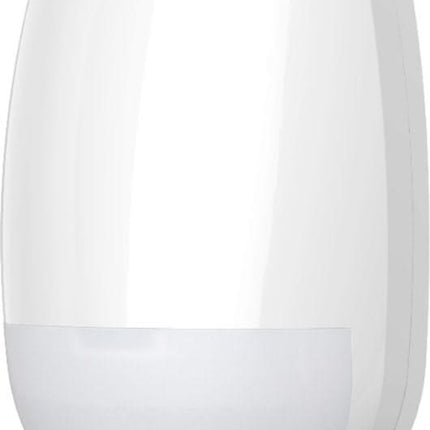

Hikvision DS-PDD12P-EG2, wired DT detector

Product form
In stock — ready to ship
Want your whole order delivered quickly?

Choose items that all show “In stock — ready to ship”. Fast delivery applies when every ordered quantity is available. If one item has a longer delivery time, we dispatch your order once it is complete. The longest delivery time then applies.

We dispatch every day except Saturday and Dutch public holidays. Estimated delivery to Germany and Austria is 1–4 business days (Monday to Friday), excluding Dutch public holidays. Supplier or carrier delays may affect the estimate. A delivery date is not yet available for reservations.

Estimated delivery: 1–4 business days

€64,46€53,27 -25% -25%
€48,60€40,17 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • Bizum
    • BLIK
    • Google Pay
    • iDEAL Wero
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Shop Pay
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation

    Size chart

    DS-PDD12P-EG2, wired DT detector

    • Detection range: 12m / 85.9°
    • Pey immunity up to 30 kg
    • Automatic sensitivity
    • Digital temperature compensation
    • 52 zones of 3D optics including creep zone protection, full coverage without blind spot
    • Selectable EOL resistors for alarm and tamper-proof wiring
    • Sealed optics preventing insect interference
    • 24 Ghz microwave
    • 9 to 16 V wide voltage adjustment with reverse polarity protection
    • Wall/ceiling mounting brackets available (sold separately)
    • IFT technology prevents false alarms

    Technische specificaties:

    Detectie Prestaties

    • Detection Method Passive Infrared; Microwave
    • Detectiebereik 12m
    • Detectiehoek 85,9°
    • Detectiezones 52
    • Detectable speed 0.3 ~ 2 m/s
    • Gevoeligheid Auto;Pet
    • Huisdierimmuniteit 30Kg
    • Witlichtfilter 6500lux
    • Microwave frequency 24 GHz (24.15 ~ 24.25 GHz)
    • Support for digital temperature compensation
    • Support for creep zone protection

    Provide

    • Ondersteuning bij digitale verwerking
    • Verzegelde optische ondersteuning
    • Sabotagebeveiliging voorzijde

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED indicator Green (PIR), orange (microwave), blue (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad

    Elektrische kenmerken

    • Power supply 9 to 16 VDC
    • Typical voltage 12 VDC
    • Stroomverbruik 17mA Max

    Algemeen

    • Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
    • Storage temperature -20 °C to 60 °C (-4 °F to 140 °F)
    • Bedrijfsvochtigheid 10% tot 90%
    • Dimensions (WxHxD) 65.7 mm (2.59") × 103.8 mm (4.09") × 45.5 mm (1.79")
    • 99 g (3.5 oz)
    • Mounting height 1.8 m to 2.4 m
    • Montagemethode Muur
    • Toepassingsscenario Binnen
    • Bracket Optional wall and ceiling accessory
