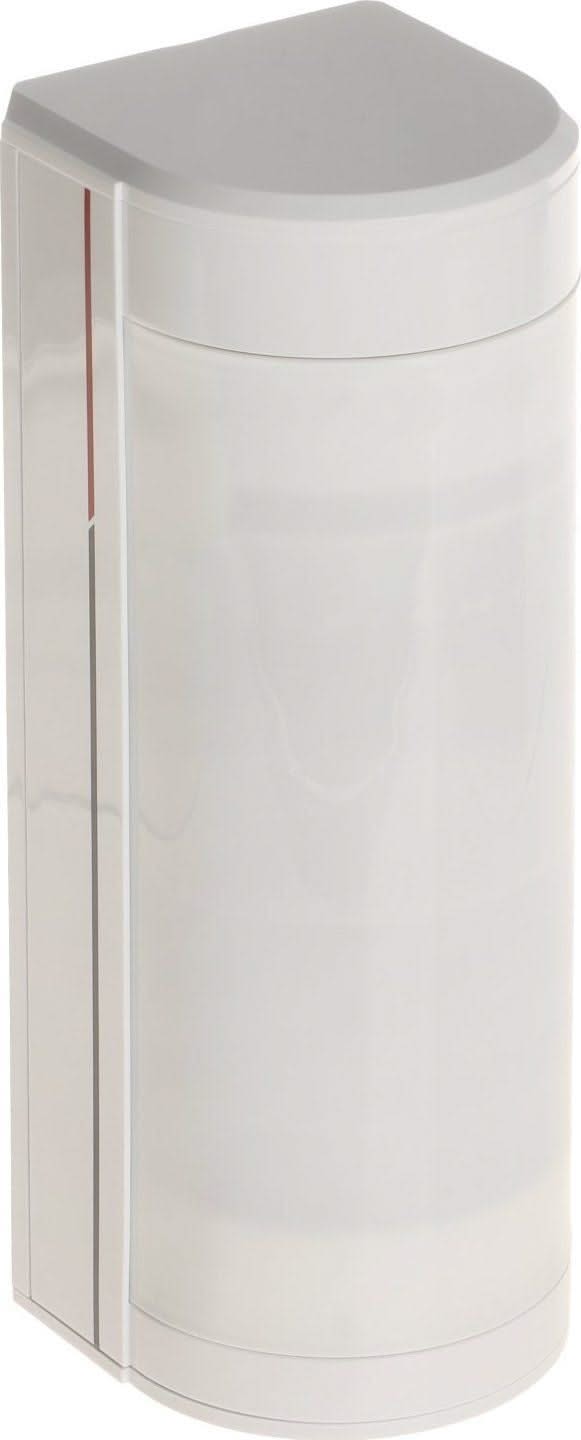

DS-PDTT15AM-LM, wired external tri-tech sensor

Delivery time 1 - 2 working days

€207,28€171,31 -14% -14%
€177,52€146,71 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • BLIK
    • Google Pay
    • iDEAL
    • Klarna
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation

    Size chart

    DS-PDTT15AM-LM, wired external tri-tech sensor

    • 90°@180° adjustable coverage
    • IP65 weather resistance for outdoor application
    • Active IR anti-masking
    • Automatic sensitivity
    • Selectable EOL resistors for alarm and tamper-proof wiring

    Technical specifications:

    Detectie Prestaties

    • Detection Method Passive Infrared; Microwave
    • Detectiebereik 15m
    • Detection angle 90° @ 180° adjustable
    • Detectiezones 92
    • Detectable speed 0.3 ~ 2 m/s
    • Gevoeligheid Auto; Laag
    • Witlichtfilter 10000lux
    • Microwave frequency 24 GHz (24.15 ~ 24.25 GHz)
    • Huisdierimmuniteit 40Kg
    • Support for digital temperature compensation
    • Ondersteuning tegen maskering
    • Adjustable coverage

      Support

      Includes pattern mask

    Support

    • Digitale verwerking Tri-Signal Logic
    • Verzegelde optische ondersteuning
    • Sabotagebeveiliging voor; achter
    • Ondersteuning voor Anti-Sway Analytics

    Koppel

    • Alarmuitgang Normaal Gesloten
    • LED indicator green (upper PIR), red (microwave), orange (lower PIR) green + orange (mask), blue (alarm)

    Overdragen

    • Overdrachtsmethode Bedraad

    Elektrische kenmerken

    • Energy consumption

      30mA (standard)

      220mA Max (with lights on)

    • Power supply 9 to 16 VDC
    • Typical voltage 12 VDC

    Algemeen

    • Operating temperature -25 °C to 60 °C (-13 °F to 140 °F)
    • Storage temperature -25 °C to 60 °C (-13 °F to 140 °F)
    • Bedrijfsvochtigheid 10% tot 90%
    • IP-waarde IP65
    • Dimensions (WxHxD) 75 mm × 202 mm × 73 mm
    • 350g
    • Mounting height 0.8 to 1.2 m
    • Montagemethode Muur
    • Toepassingsscenario buiten

    DS-PDTT15AM-LM, wired external tri-tech sensor
