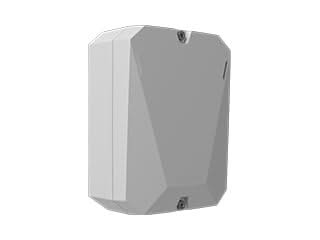

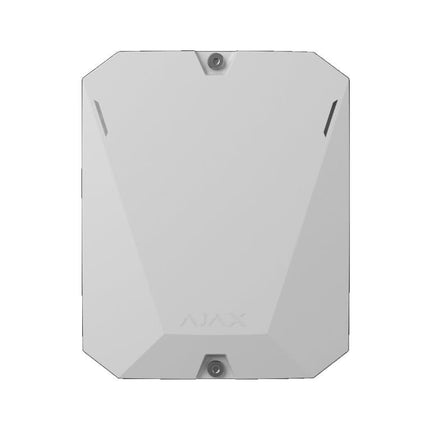

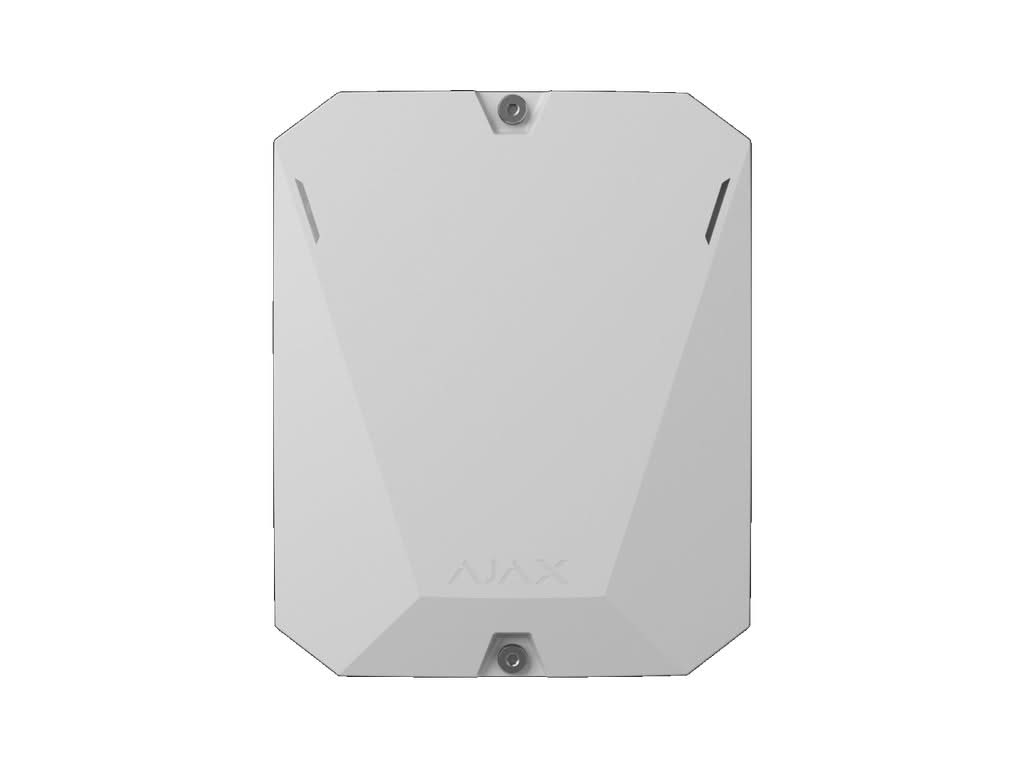

The Ajax Hub BP Jeweller is a wireless control panel that runs entirely on batteries and is specifically designed for locations without a permanent power supply. Examples include vacant properties, construction sites, remote locations, and farms. Thanks to two SIM cards, photo verification, and long battery life, you can maintain control over your security even where there’s no mains power.
About this product

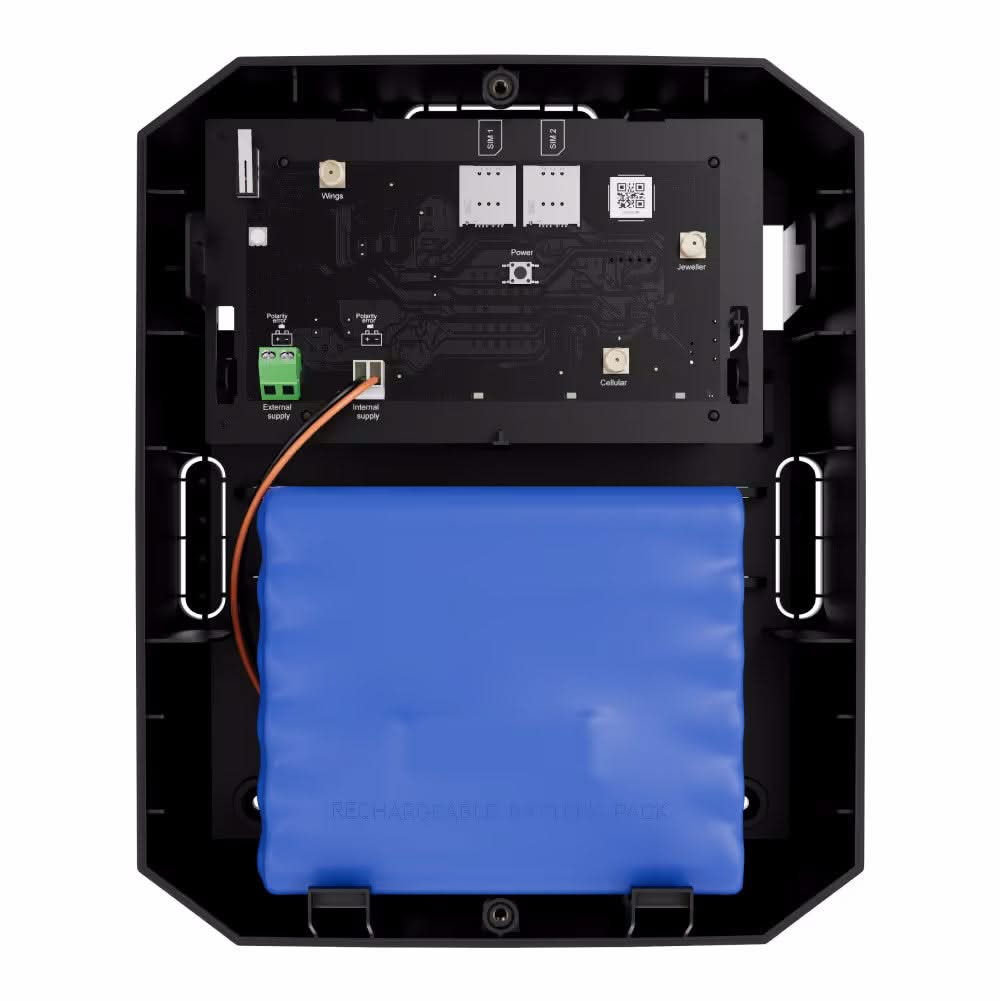

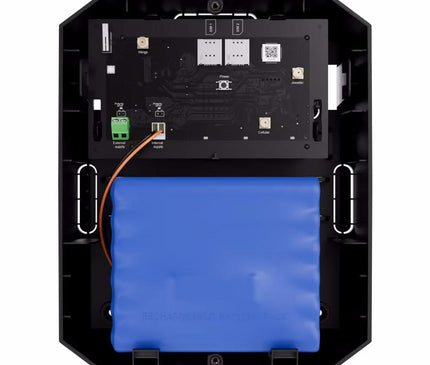

The Hub BP Jeweller serves as the central hub of an Ajax alarm system in locations where power is unavailable. The panel is powered by an internal and/or external battery (sold separately) and can also operate on alternative power sources such as solar panels. Communication takes place via two SIM cards over 2G, 3G, and LTE networks, with automatic switching between providers to ensure an uninterrupted connection. The hub also uses the Wings radio protocol to transmit video footage.
Key Benefits
- Operates without a power outlet: ideal for locations without a power connection.
- Long battery life: up to 18 months in full operation and more than 5 years in power-saving mode using an external battery.
- Dual SIM connection: two micro-SIM cards with automatic switching between 2G, 3G, and LTE.
- Photo verification: Receive images upon an alarm, typically within about 9 seconds.
- Remote management: full configuration and control via the Ajax app, without the need for an on-site visit.
Key features
- Supports up to 100 Ajax devices, 50 users, and 9 security groups.
- Up to 32 automation scenarios.
- Radio range of up to approximately 2,000 meters in open terrain.
- Connections for external antennas (sold separately) for additional signal strength.
- Encrypted communication, tamper protection, and jamming detection.
Application
The Hub BP Jeweller is designed for indoor installation and is suitable for a wide range of locations: from private homes to large construction sites and remote properties. Thanks to its battery power supply, the panel is ideal for use in places where a mains-powered hub cannot be installed.
Why choose this product?
As a central component of the Ajax ecosystem, you can combine the Hub BP with intrusion, fire, video, and automation devices, all managed through a single app. The combination of battery power, dual SIM connectivity, and photo verification makes this panel a reliable choice for properties without a fixed power supply.
In the box
- Hub BP Jeweller control panel
- Housing
- Mounting kit
- Quick Start Guide
Note: Internal and external batteries are not included and are sold separately.
Technical Specifications
| Type | Wireless control panel |
| Device Capacity | Up to 100 Ajax devices |
| Users | Up to 50 |
| Security groups | Up to 9 |
| Automation scenarios | Up to 32 |
| Communication | Jeweller & Wings, wireless, encrypted |
| Mobile connection | 2 × micro-SIM (2G / 3G / 4G LTE) |
| Radio range | Up to approx. 2,000 m (open field) |
| Photo verification | Yes, delivery typically within approx. 9 s |
| Power supply (external/internal) | 4.2–16 V⎓, up to 2 A (batteries not included) |
| Battery life (external, full charge) | Up to 18 months |
| Battery life (external, power-saving mode) | More than 5 years |
| Dimensions | 196 × 238 × 100 mm |
| Weight | 1,012 g |
| Operating temperature | −10 °C to +40 °C |
| Operating humidity | Up to 75% |
| Protection class | IP40 (indoor use) |
| Color | White |
| Warranty | 24 months |
Specifications based on the official Ajax Systems product documentation.
