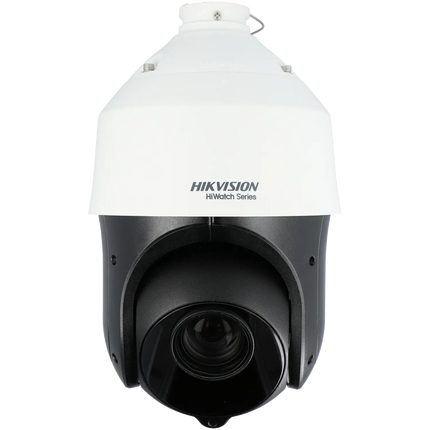

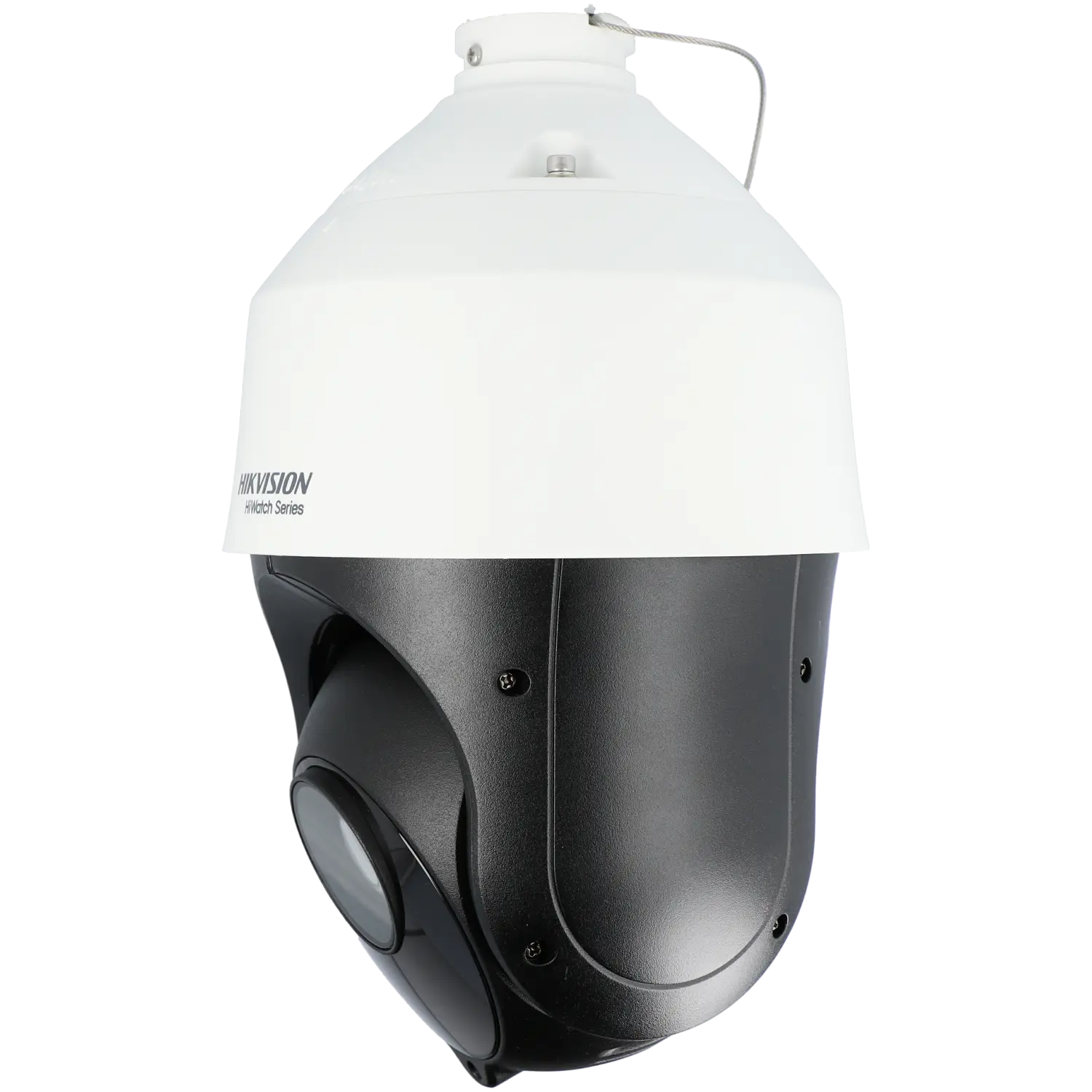

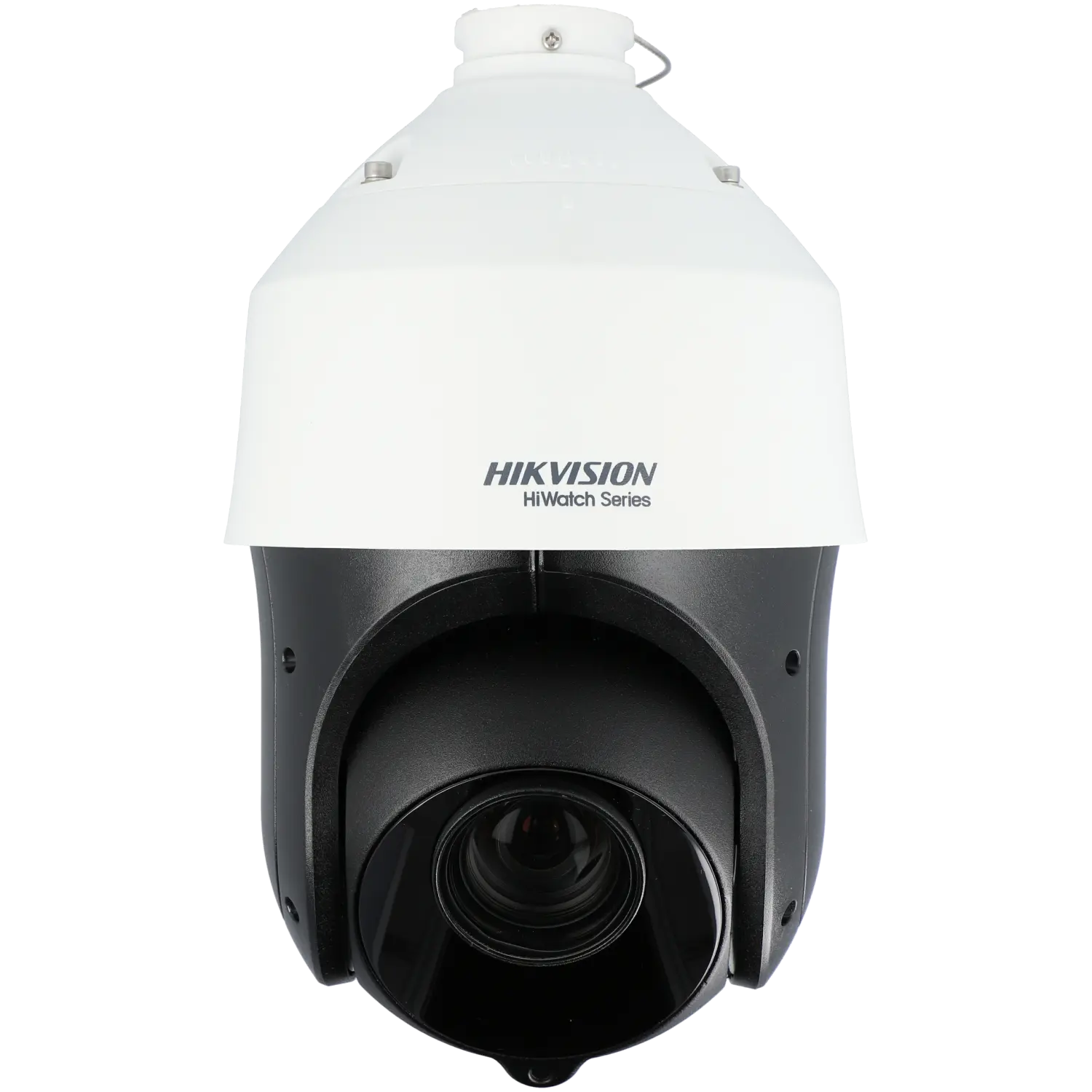

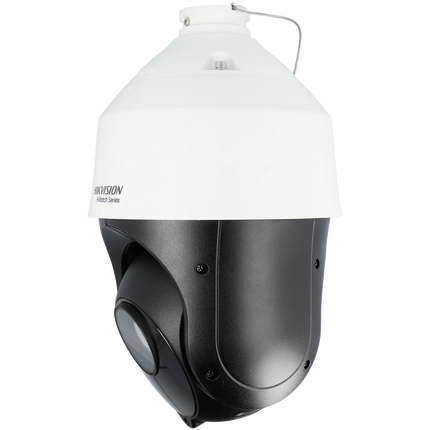

HWP-T4215I-D, 2MP Turbo HD (coax) PTZ, 15x Zoom 100m IR, IP66

The Hikvision HiWatch HWP-T4215I-D is a rugged PTZ (Pan-Tilt-Zoom) "speed dome" camera, ideal for applications where you need flexible lines of sight over large areas - for example, lots, parking lots, ramps, or industrial sites. This camera is intended for coax connection in coax-based camera systems. This camera combines extensive camera movement capabilities with a powerful zoom and good low-light performance.

• Image sensor: 1/2.8″ progressive scan CMOS

• Maximum resolution/frame rate: 1920 × 1080 (Full HD), 25 fps (50 Hz) / 30 fps (60 Hz)

• Minimum illumination: Color: 0.005 lux (F1.6, AGC ON) / Black and white: 0.001 lux; 0 lux with IR on

• Lens / optical zoom: 5 mm - 75 mm, 15× optical zoom

• Field of view (horizontal): approx. 53.8° (wide) to approx. 4.0° (telephoto)

• WDR (Wide Dynamic Range): ≥ 120 dB

• PTZ (Pan / Tilt / Zoom) capabilities:
  - Pan: 360° continuously, speed 0.1° - 80°/s
  - Tilt: -15° to 90° (with automatic flip), speed 0.1° - 80°/s
  - Presets: 256
  - Patrols / scans: 10 patrols, 5 patterns

• Infrared/night vision: Up to about 100 meters, IR intensity. automatically tuned to zoom

• Outputs & signals: BNC output for HDTVI + CVBS (composite) c

• Communication / control: RS-485, supported protocols: Hikvision, Pelco-P, Pelco-D

• Power / consumption: 12 V DC, maximum ~ 20 W (IR uses additional power)

• Operating temperature / humidity: -30 °C to +65 °C, ≤ 90% relative humidity

• Protection rating: IP66 (dust- and splash-proof).

• Dimensions & weight: Ø 165.9 mm × 290 mm, about 2 kg (without mounting bracket)
