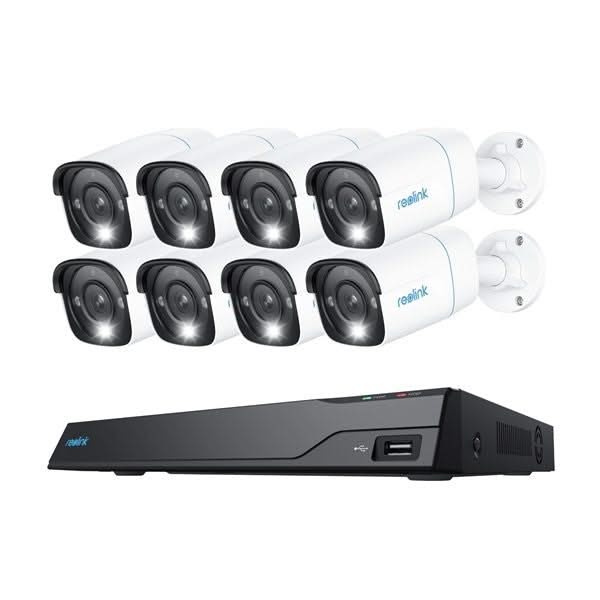

NVS16-8MB8, 4K Security Set, UHD, PoE and 4TB HDD

Delivery time 1 - 2 working days

€952,06€786,83 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • BLIK
    • Google Pay
    • iDEAL
    • Klarna
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Union Pay
    • Visa

    Cheaper somewhere else?

    Lowest price guarantee

    With our lowest price guarantee, you no longer have to compare, we already do that for you. Find the exact same product cheaper elsewhere before you buy? Let us know and we will adjust our price.

    The small print

    • The product has the same specifications and color.
    • The product is sold by a Dutch brand dealer (warranty included).
    • The product is available from stock. You can pick it up immediately or it will be delivered to your home the next day.
    • The price guarantee is given on the sale price, without shipping costs or other services.
    • The lowest price guarantee is valid until the moment of purchase.

    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>
    B2B Installers order with discount

    Register B2B company

    Are you a professional installer looking for new opportunities and long-term partnerships? Then join our growing network of reliable B2B installers!

    What do we offer you?
    - Access to high-quality products and projects
    - Interesting margins and purchasing conditions
    - Technical support and training
    - A reliable partnership

    Signing up is easy:
    Fill out the online form and we'll contact you soon for an initial introduction.

    Together, we'll make every project a success.
    Sign up today and grow with us!

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation

    Size chart

    Reolink 4K 8MP security IP camera captures videos and images in full 3840x2160 resolution at 20 frames per second, providing an ultra-clear and ultra-smooth viewing experience. Plus, the built-in microphone gives you every audio and visual detail when it matters.

    Thanks to 18 powerful infrared LEDs and advanced 3D-DNR technology, the 4K IP camera can capture crisp and clear video at night.

    The PoE security camera in the kit uses a single Ethernet cable for both data transmission and power. No complicated wiring. In addition to streamlining installation, the PoE capability ensures a reliable and lag-free network connection.

    All 8 cameras can continuously record to the pre-installed 4TB hard drive in the NVR. You can replay recordings throughout the day - not just motion clips - to capture everything you need.

    This 4K security camera system can be expanded to a set of 16 cameras with Reolink IP cameras - bullet, dome or PTZ; 16 MP, 12 MP, 8 MP, 5 MP or 4 MP - to cover your entire home, store or factory with no dead spots.

    Packed in a rugged aluminum housing, the waterproof and rugged cameras protect you inside and out, in rain and shine, now and in the future.

    Stay connected to your home or business from anywhere on your cell phone, tablet or computer. Watch live streaming, replay important moments or monitor motion alerts with just a few clicks.

    Specifications:

    Model: Reolink NVS16-8MB8

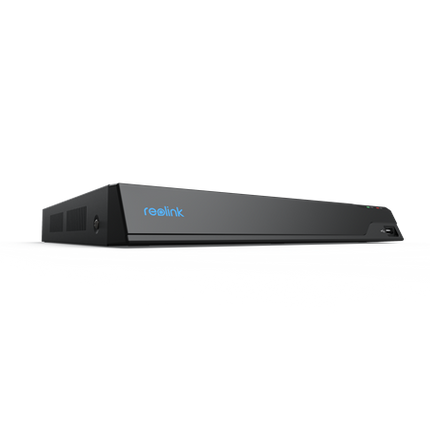

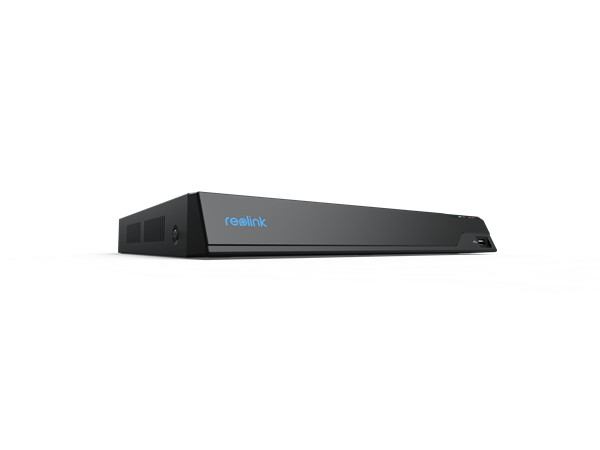

    Model Model NVR NVS16
    Product Name 16-channel 12MP PoE NVR

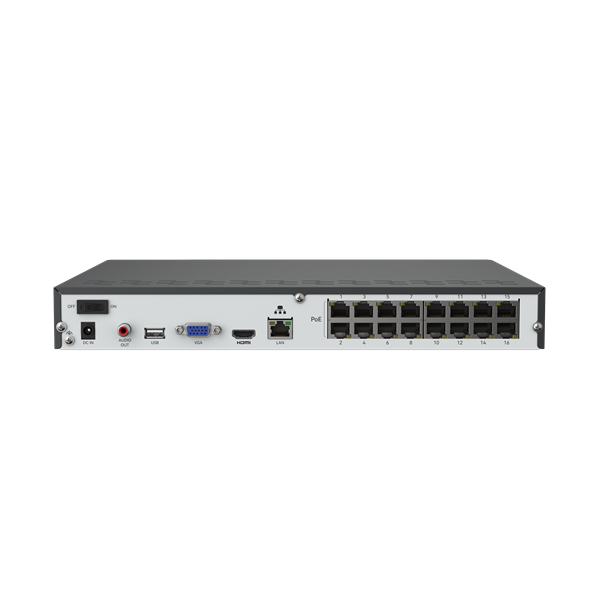

    External Interface Video out 1 VGA, 1 HDMI
    Audio port 1 audio out channel, RCA
    USB ports 2x USB 2.0
    Ethernet ports 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
    16, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras
    Video / Audio output Video input PoE IP camera x 16
    Video output HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
    VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
    Audio input Cameras with built-in microphone
    Recording
         		Live View/Playback 12MP/8MP/5MP/4MP/3MP/1080P/720P
    Video Format H.265, H.264
    Synchronous playback 1-4 channels (supports 1-channel playback if viewing in resolution of 8MP or higher)
    Recording modes Person detection, vehicle detection, pet detection, motion-activated detection, 24/7
    Storage Internal HDD 2 x SATA interface for 2 HDDs (1x 4TB HDD pre-installed)
    Capacity Up to 12TB (max 6TB for each HDD)
    External HD -
    PoE Max power per port 25W
    Standard IEEE 802.3af/at
    Network Network Protocol HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
    Browser Edge, Firefox, Chrome, Safari
    OS PC: Windows, Mac OS; SmartPhone: iOS, Android
    Max users 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams)
    General

         		Working environment Temperature: -10C~+45C, Humidity: 10%~90%
    Current DC 48~54V
    Power Consumption <10W (without HDD&PoE)
    Dimension(mm) 330 x 45 x 285mm
    Weight (without HDD) 1.8kg
    Warranty 2 years

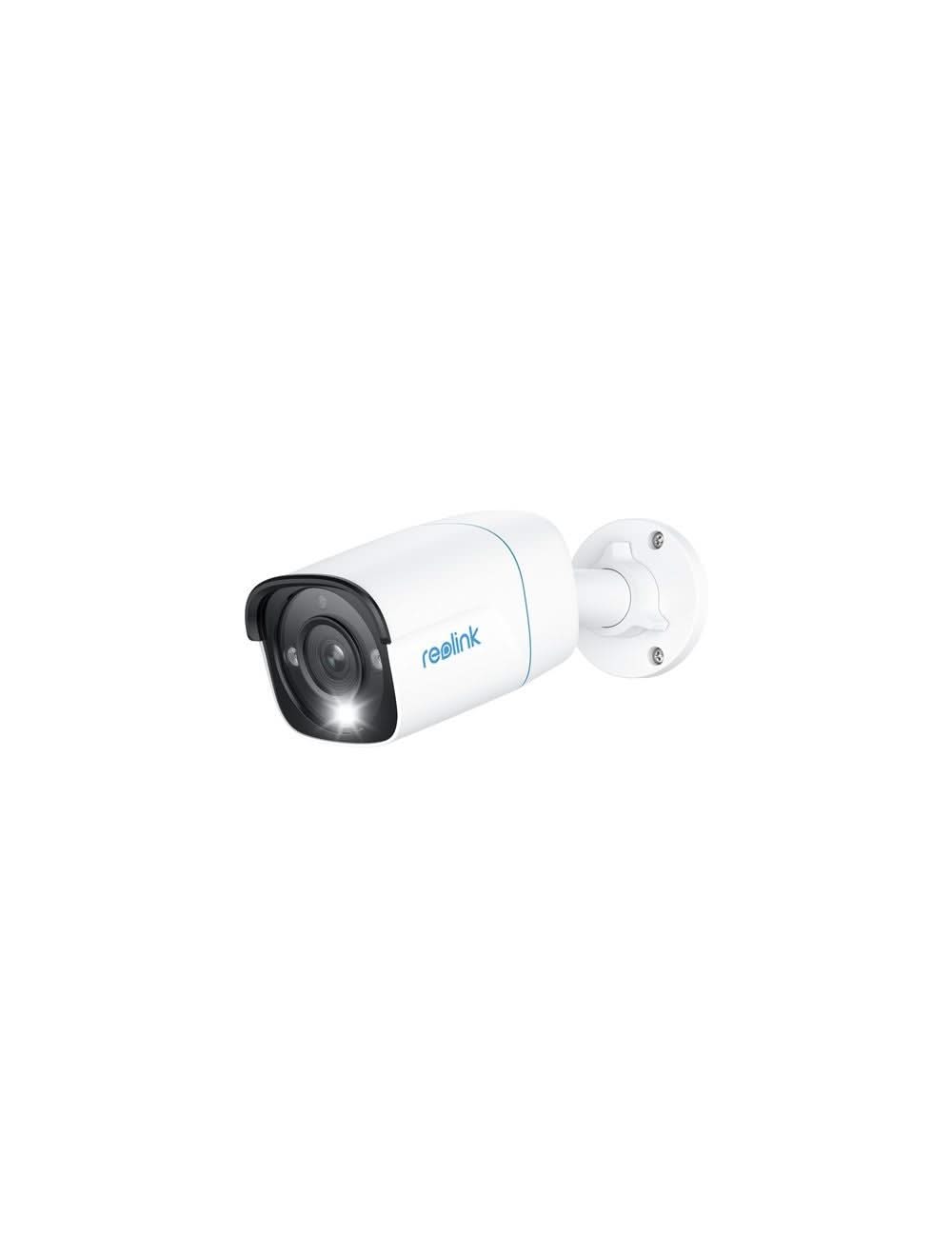

    Camera model: P330
    Video & Audio


         		Sensor 1/2.49" CMOS Sensor
    Video Resolution Standard: 3840 x 2160 (8 Megapixel) @25fps
    Lens f=2.8mm fixed; F=2.0 with IR cut
    Video format H.265
    Viewing angle Horizontal: 105°, Vertical: 56°
    Night vision Up to 30 meters (LED: 2pcs/1.8W/850nm)
    Spotlight 1pcs/4.3W/6500K/700lum
    Day/night mode IR cut filter with auto switching
    Audio Built-in microphone
    Power

         		PoE IEEE 802.3af, 48V Active
    Power supply DC12V-1A, <12W
    Software features Frame Rate Main Stream 2fps - 25fps (default 25fps)
    Sub Stream 4fps - 15fps (default 10fps)
    Code rate Main Stream: 2048Kbps x 8192Kbps (default 6144Kbps)
    Sub Stream: 64Kbps x 512Kbps (default 256 Kbps)
    Browser Edge, Chrome, Firefox, Safari
    OS PC: Windows, Mac OS; Smartphone: iOS, Android
    Smart alarms Motion, person, vehicle and pet detection
    Protocols HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
    Users 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams)
    Works with Google Assistant, Reolink NVR
    Recording modes Motion-activated (default), on schedule
    Interface


         		System Reset button
    Power DC power port
    Ethernet One 10M/100Mbps RJ45
    Storage Micro SD card slot (max 256GB)
    General Working Environment Operating temperature -10° ~ 55° C;
    Operating humidity 10%~90%
    Waterproof IP66
    Dimension 68x63x188mm
    Weight 452g
