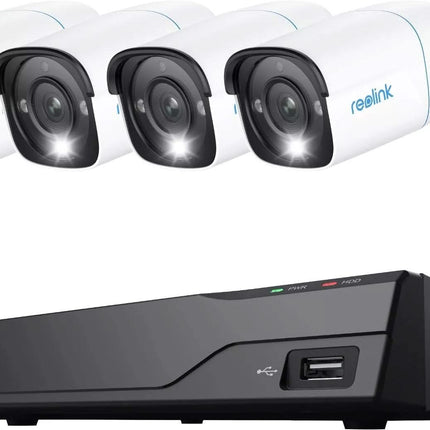

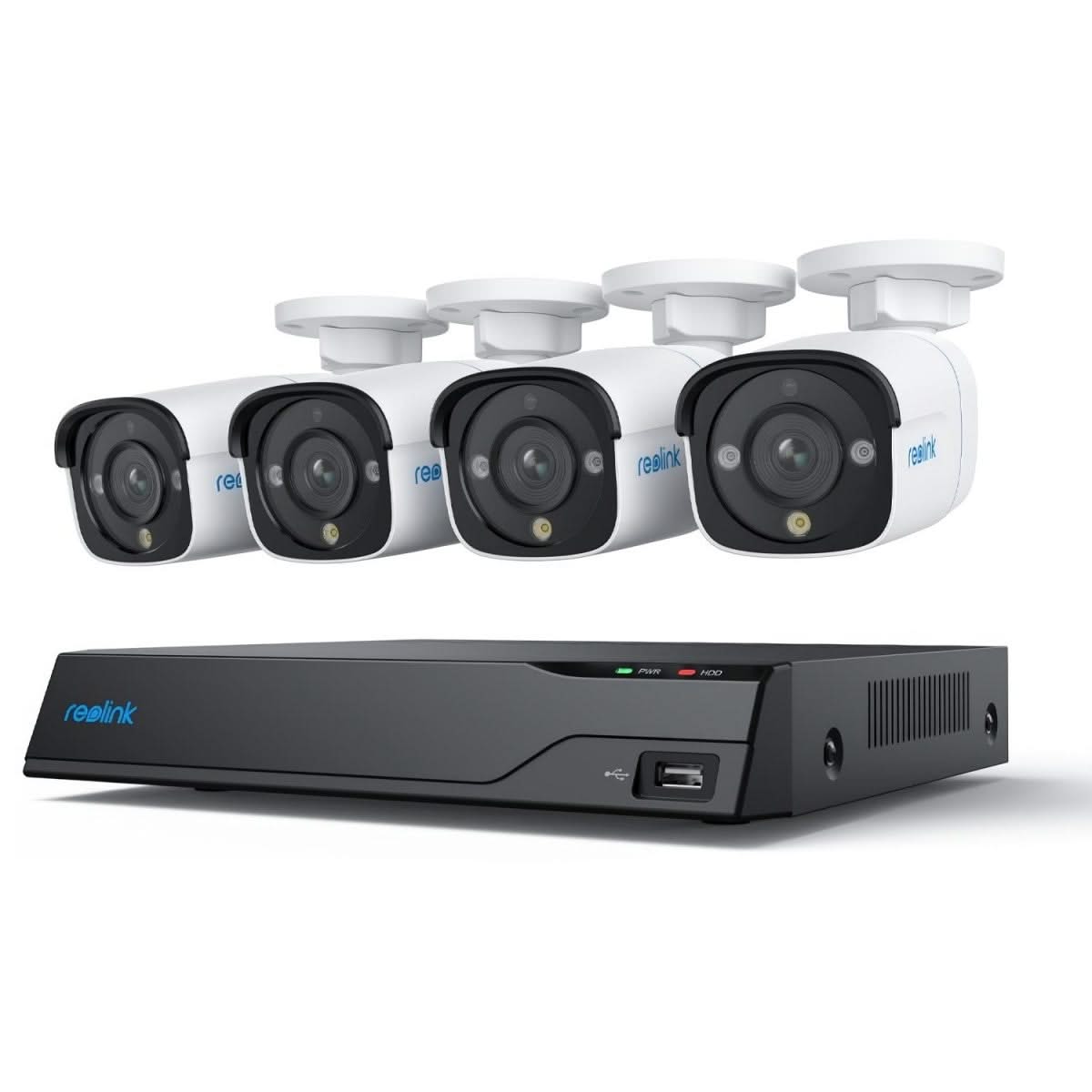

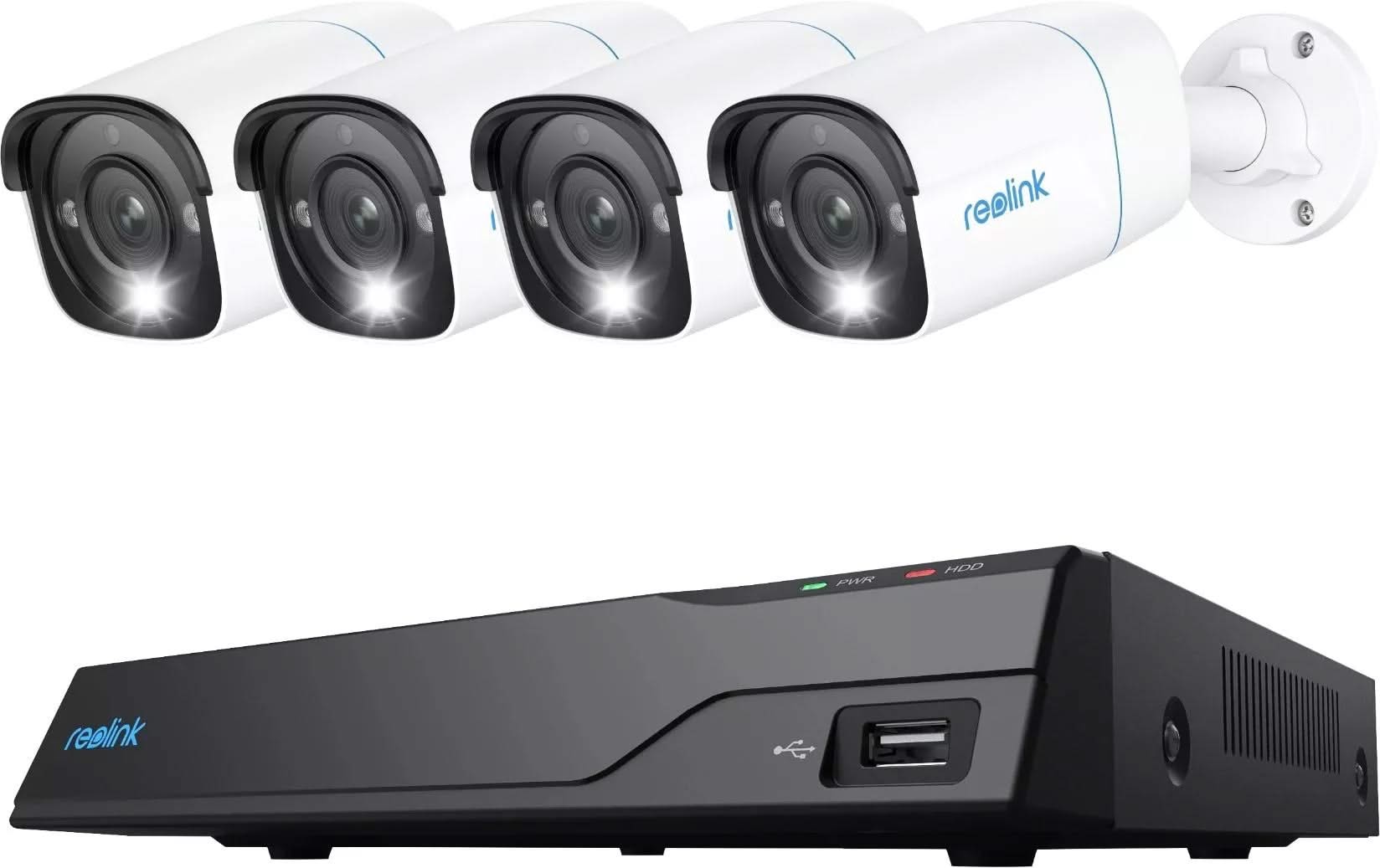

NVS8-8MB4, Security kit 2TB, 8MP 4K, PoE and smart detection

Delivery time 1 - 2 working days

€545,45€450,79 Incl. VATExcl. VAT

    • American Express
    • Apple Pay
    • Bancontact
    • BLIK
    • Google Pay
    • iDEAL
    • Klarna
    • Maestro
    • Mastercard
    • MobilePay
    • PayPal
    • Union Pay
    • Visa
    • Pay afterwards within 30 days - both private and business

      <p>Pay afterwards within 30 days - both private and business</p>

    B2B Installers order with discount

    • Showroom in Gorinchem
    • The best service and warranty
    • 3500+ customers give us a 4.71 / 5
    • Free remote installation

    check Associated products for NVS8-8MB4, Security kit 2TB, 8MP 4K, PoE and smart detection

    Size chart

    Equipped with advanced smart detection technology, this security system is intelligent enough to distinguish people and cars from other objects. The system offers you true peace of mind, as there are no more false alarms.

    4K Ultra HD (8MP, 3840 x 2160) delivers nearly 4 times the clarity of 1080p and exceeds 5MP/4MP Super HD by a wide margin. This superior kit can vividly display the finest important details even when you zoom in digitally, clearing up any ambiguity in video footage previously encountered.

    The 18 powerful infrared LEDs in each 4K security camera emit invisible lights that pierce darkness up to 100 feet. In addition, advanced 3D-DNR technology significantly reduces noise levels, ensuring brighter, sharper and smoother nighttime performance.

    A true plug and play security system! It features PoE (Power over Ethernet) and needs only one network cable for both power and video signal transmission. Easy wiring - the wiring process could not be easier for do-it-yourselfers and beginners.

    With a pre-installed 2TB HDD and storage capacity of up to 12TB, this 8-channel 4K security camera system supports simultaneous live feed and 24/7 recording of all cameras. You'll have video all day long without missing a beat.

    You can place these 4K Ultra HD PoE cameras anywhere, outdoors or indoors! With an IP67 waterproof rating, these cameras will never shy away from the elements, such as black ice, heavy snowfall, extreme cold and heat.

    Specifications:

    Model:Reolink NVS8-8MB4

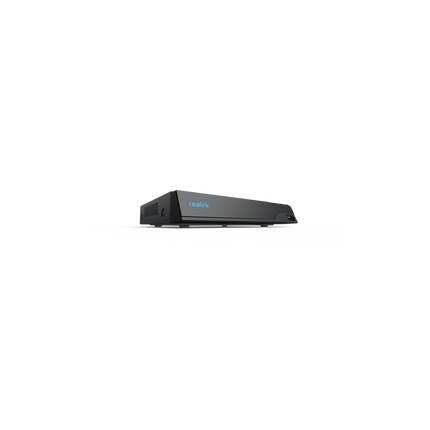

    Model Model NVR NVS8
    Product Name 8-channel 12MP PoE NVR

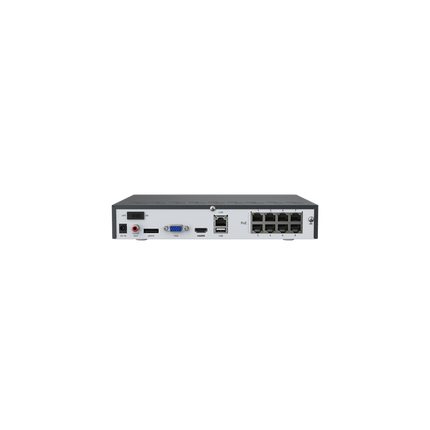

    External Interface Video out 1 VGA, 1 HDMI
    Audio port 1 audio out channel, RCA
    USB ports 2x USB 2.0
    Ethernet ports 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface for LAN/WAN
    8, RJ-45 10/100 Mbps Self-Adaptive PoE Ethernet Interface for IP Cameras
    Video / Audio output Video input PoE IP camera x 8
    Video output HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
    VGA: 1920x1080, 1280x1024, 1280x720, 1024x768
    Audio input Cameras with built-in microphone
    Recording
    Live View/Playback 12MP/8MP/5MP/4MP/3MP/1080P/720P
    Video Compression H.265, H.264
    Synchronous Playback 1-4 channels (supports 1-channel playback if viewing in resolution of 8MP or higher)
    Recording modes Person detection, vehicle detection, pet detection, motion-activated detection, 24/7
    Storage Internal HDD 1 SATA interface (1x 2TB HDD pre-installed)
    Capacity Up to 12TB (max 6TB for each HDD)
    External HD 1 eSATA interface for HDD
    PoE Max power per port 25W
    Standard IEEE 802.3af/at
    Network Network Protocol HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, SMTP, SSL/TLS, DNS, DDNS, NTP
    Browser Edge, Firefox, Chrome, Safari
    OS PC: Windows, Mac OS; SmartPhone: iOS, Android
    Max users. 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 sub-streams and 2 mainstreams)
    General

    Working environment Temperature: -10C~+45C, Humidity: 10%~90%
    Current DC 48~53V
    Power consumption <10W (without HDD&PoE)
    Dimension(mm) 260 x 41 x 230
    Weight (without HDD) 1.4 kg
    Warranty 2 years

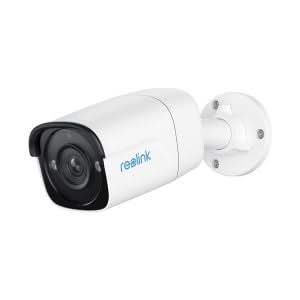

    Camera model: P330
    Video & Audio


    Sensor 1/2.49" CMOS Sensor
    Video Resolution Standard: 3840 x 2160 (8 Megapixel) @25fps
    Lens f=2.8mm fixed; F=2.0 with IR cut
    Video format H.265
    Viewing angle Horizontal: 105°, Vertical: 56°
    Night vision Up to 30 meters (LED: 2pcs/1.8W/850nm)
    Spotlight 1pcs/4.3W/6500K/700lum
    Day/night mode IR cut filter with auto switching
    Audio Built-in microphone
    Power

    PoE IEEE 802.3af, 48V Active
    Power supply DC12V-1A, <12W
    Software features Frame Rate Main Stream 2fps - 25fps (default 25fps)
    Sub Stream 4fps - 15fps (default 10fps)
    Code rate Main Stream: 2048Kbps x 8192Kbps (default 6144Kbps)
    Sub Stream: 64Kbps x 512Kbps (default 256 Kbps)
    Browser Edge, Chrome, Firefox, Safari
    OS PC: Windows, Mac OS; Smartphone: iOS, Android
    Smart alarms Motion, person, vehicle and pet detection
    Protocols HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
    Users 20 users (1 admin and 19 user accounts); supports up to 12 video streams simultaneously (10 substreams and 2 mainstreams)
    Works with Google Assistant, Reolink NVR
    Recording modes Motion-activated (default), on schedule
    Interface


    System Reset button
    Power DC power port
    Ethernet One 10M/100Mbps RJ45
    Storage Micro SD card slot (max 256GB)
    General Working Environment Operating temperature -10° ~ 55° C;
    Operating humidity 10%~90%
    Waterproof IP66
    Dimension 68x63x188mm
    Weight 452g
