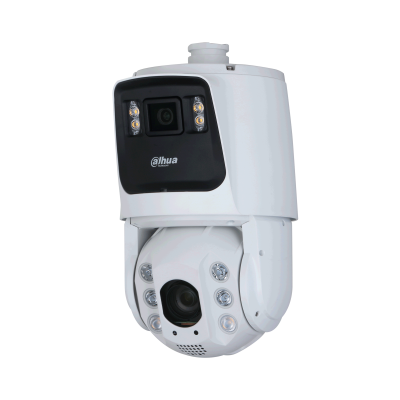

SDT7C424-4F-ZBZJ-APV-0400 4MP Dual-lens PTZ 24x optical zoom, incl. wall mount and power supply
The SDT7C424-4F-ZBZJ-APV-0400 features two 4MP cameras: a 4 mm overview camera and a 4.8 to 115 mm PTZ camera. The overview camera has a horizontal opening angle of 116 degrees, making it possible to survey a large area at once. The PTZ camera offers flexibility through the ability to target specific areas what needs to be monitored. When movement, intrusion into an area or crossing a drawn line is detected by on the overview camera, the PTZ camera can be automatically directed to that specific area. This combination of cameras makes it possible to both maintain a broad overview of a large area and zoom in on specific parts when needed
Technical specifications:
| Camera | Number of image sensors: | 2 |
| | Optical/Thermal: | Optisch |
| | Beeldsensor: | PTZ:1/2.8" CMOS |
| | Resolutie: | 2560 x 1440 |
| | Pixel count: | 4MP |
| | Minimum illumination strength (in colour): | 0.005 lux |
| | Minimum illumination strength (LED on (black/white)): | 0 lux |
| | Verlichting: | IR, Strobe Lighting |
| | LED distance: | 150m (IR), 30m Led light |
| | LED On/Off (Day/Night): | Auto/Manual |
| | Shutter speed: | 1/1s ~ 1/30,000s |
| | Noise suppression: | 2DNR, 3DNR |
| | Beeldsensor2: | Panorama: 1/1.8 |
| | Optical/Thermal2: | Optisch |
| | Number of Pixels2: | 2560 x 1440 |
| Lens | Lens type: | Motorzoomlens |
| | Iris: | Auto Iris |
| | Focal distance: | 4.8mm ~ 115mm |
| | Maximum opening: | F1.6 ~ F3.6 |
| | Horizontal aperture angle: | 53.1° ~ 3.4° |
| | Vertical opening angle: | 30.4° ~ 1.95° |
| | Focus control: | Auto/Manual |
| | Focal distance2: | 4 mm |
| | Maximale opening2: | F1.0 |
| | Horizontal opening angle2: | 95° |
| | Vertical opening angle2: | 52.5° |
| Video | Stream capability: | 3 streams |
| | Video compression: | H.264, H.264 +, H.265, H.265 + |
| | Images per second (Main stream): | 25fps @2560 × 1440 |
| | 2nd stream: | 25fps D1: 720 x 576 |
| | 3rd stream: | 25fps @1920 x 1080 |
| | Bitrate: | H264: 2816 kbps-8192 kbps, H265: 1024 kbps-7936 kbps |
| | Dag/Nacht: | Auto (filter), Colour, Black/White |
| | Light compensation: | BLC, HLC, WDR(120dB) |
| | Digital Zoom: | 16x |
| | Optical Zoom: | 24× |
| | Motion detection: | Aan/Uit |
| | |
| | Smart Functions: | AI Face Capture/Attributes |
| | | AI Perimeter Protection |
| | | AI Motion detection |
| | | Auto-track 2.0 |
| | Electronic Image Stabilisation(EIS): | Yes |
| | Defog: | Yes |
| Audio | Built-in microphone: | No |
| | Audio input: | Yes |
| | Audio Output: | Yes |
| | Speaker: | Yes for Audio alarm |
| Netwerk | Ethernet: | RJ-45 (10/100 Base-T) |
| | Storage option SD card: | Yes |
| | Maximum Storage Capacity SD card: | 128GB |
| Interface | Alarm: | Yes |
| | Number of channels in: | 2 |
| | Number of channels out: | 1 |
| Elektrisch | including power supply: | Yes |
| | Voeding: | 36V DC |
| | Max Consumption: | Base: 20 W, Max: 45 W (lighting + heating + PTZ working + sound and light alarm) |
| Omgeving | Operating temperature: | -40°C ~ +65°C |
| | Water resistance: | IP66 |
| Algemeen | Additional accessories included: | 1x PFB305W Wall Mount, 1x PFA114, 1x 36V DC/ 2.23A Adapter |
| Constructie | Materiaal | Aluminium |
| | Diameter | Ø202mm |
| | Height | 358mm |
| | Gewicht: | 5.6 kg |
| DORI | The DORI makes it easy to see if this camera is suitable for the application that will be used. The DORI is based on lab tests and inspected with EN 62676-4, this inspection applies to: Detect, Observe, Recognise and Identify. |
| | | | Detecteren | Observeren | (R) Herkennen | Identificeren | | Depth | Panorama: 102m. PTZ: 1925mm | Panorama: 40.8m. PTZ: 771.2mm | Panorama: 20.4m. PTZ: 325.6mm | Panorama: 10.2m. PTZ: 192.8mm | |
| PTZ | Pan/Tilt Range | Pan: 0° ~ 360° (endless)
Tilt: -20° ~ 90° (auto flip 180°) |
| | Manual operating speed | Pan: 0.1° ~ 160° /s; Tilt: 0.1° ~ 120° /s |
| | Preset Speed | Pan:240° /s; Tilt: 200° /s |
| | Presets | 300 |
| | PTZ Mode | 8 Tours (up to 32 preset per tour) |
| | Pattern | 5 |
| | scan | 5 |
| | Idle Motion | Preset/Tour/Pattern/Scanning |
| | Protocol | DH-SD Pelco-P/D (auto recognition) |
| | Auto Tracking | yes |
