This product is sold individually. A minimum of 2 Bridge antennas are required for a working configuration. Multiple Bridge antennas can be received on 1 antenna. Power supply of the antennas is via PoE via supplied adapter, consumption max.30W. PoE out is available so that a poe camera can easily be connected to the bridge and powered.

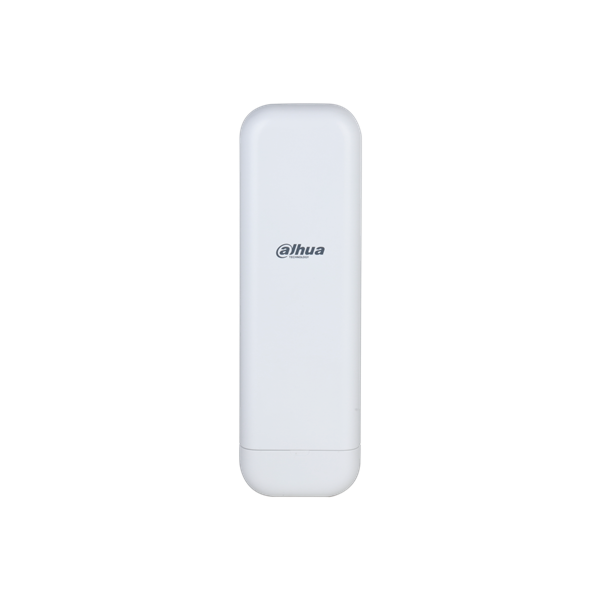

Dahua's wireless bridges offer reliable and powerful wireless connectivity for camera applications. These bridges have dedicated antennas with PoE input and output, suitable for point-to-point, point-to-multi-point and back-to-back applications. Each antenna has a convenient Wi-Fi management function for local network, configuration and monitoring via WebUI, with simple side installation indicators. Dahua's wireless bridges provide flexible and high-quality solutions for wireless video applications.
The Dahua WBC5 series is an ideal solution for making wireless connections to camera products. The specifications are for reference, the final performance is environment dependent. This solution lends itself well to wireless connection to camera masts or outbuildings without their own network facilities, for example. The feasibility of the connection is indicated in kilometers.
Free line of sight is required for good stable operation:
To have good operation, the antennas must have a free view to each other. Buildings, trees and other obstacles should be avoided. On the antennas is a signal indicator on which the quality of the connection can be read directly.

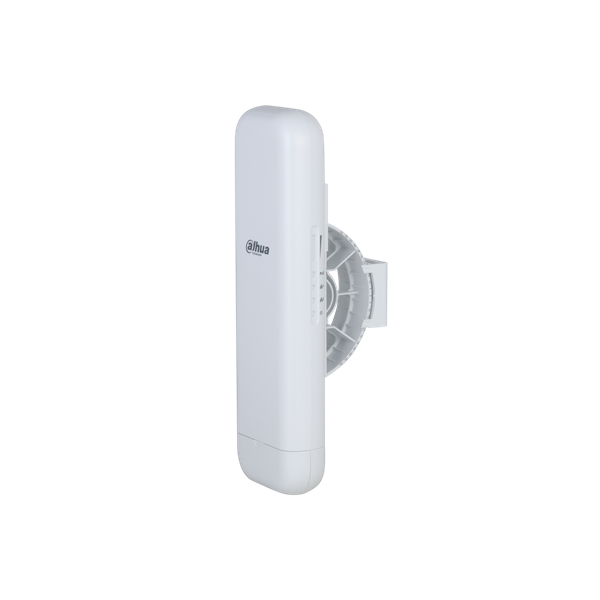

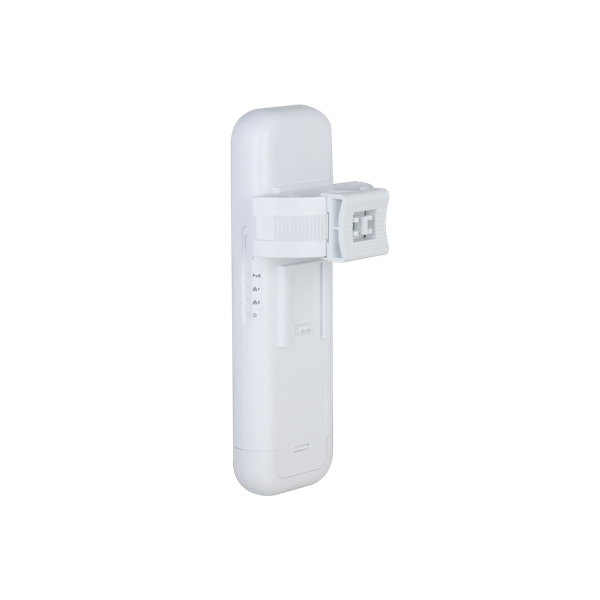

The antennas are supplied including mounting material and thus hose clamps. The supplied hose clamp is suitable for poles with a diameter between 59 and 82mm
A longer clamp is available as an accessory.
Specifications:
| Hardware | Interface | 1 × PoE RJ-45 (1000 Mbps);
1 × LAN RJ-45 (100 Mbps) |
| | Power Module Connector | 1 × PoE RJ-45 (IN: 30 W) |
| | Wireless standard | 2.4GHz: 802.11b/g/n;
5GHz: 802.11a/n/ac |
| | Power supply | PoE IN: 802.3at;
PoE OUT: 802.3af |
| | Included power adapter | Yes |
| | Included antenna | Yes |
| | Ethernet ports | 2 |
| | Ethernet port speed | 10/100/1000 Mbps |
| | Reset button | 1 |
| | Power consumption | < 30 W |
| | External port | 2 × RJ-45; 1 × Reset |
| | Indicator lights | 1 × power indicator;
2 × LAN port indicators;
1 × PoE indicator;
3 × wireless signal strength indicators |
| Features | Encryption mode | WPA-PSK/AES/TKIP |
| | Management and log | Syslog; NTP |
| | Web page Configuration | Management via web configuration |
| | Firmware update | Web update |
| | Wireless Certification | CE/FCC |
| | Security mechanism | WPA/WPA2; hidden SSID |
| | Network protocol | UDP; TCP; HTTPS; IPv4; NTP; DHCP |
| | TDMA enhancement | Yes |
| | TDMA | Yes |
| General | Range | Up to 1KM at 90° angle |
| | Operating Temperature | -30 °C to +65 °C (-22 °F to +149 °F) |
| | Storage Temperature | -40 °C to +80 °C (-40 °F to +176 °F) |
| | Operating humidity | 5%-95% (RH), non-condensing |
| | Gross Weight | 0.46 kg (1.01 lb) |
| | Net weight | 0.37 kg (0.82 lb) |
| | Packaging dimensions | 297 mm × 110 mm × 108 mm (11.7" × 4.33" × 4.25") |
| | Product dimensions | 268 mm × 82 mm × 35 mm (10.55" × 3.23" × 1.38") |
| | Memory | 1 Gb |
| | Mounting | Mounting bracket for pole included |
| | Static Protection | Air Discharge: 15 kV;
Contact Discharge: 8 kV |
| | Lightning Protection | Common mode: 6 kV;
Differential mode: 4 kV |
| | Installation | Pole mount |
